3D Antenna Measurement System AMS18G

• Quick Setup
• Dual-axis movement (EL and AZ planes)
• High resolution (up to 1ºper step)
• Wide frequency range (0.8 to 18 GHz)
• Max 2.5 kg antenna DUT
• Compatible with various VNAs
• Measured data in standard *.csv format
• Sample MATLAB codes for 2D/3D antenna pattern plots

Frequency Range: DC to 18 GHz (refer to VNA options)

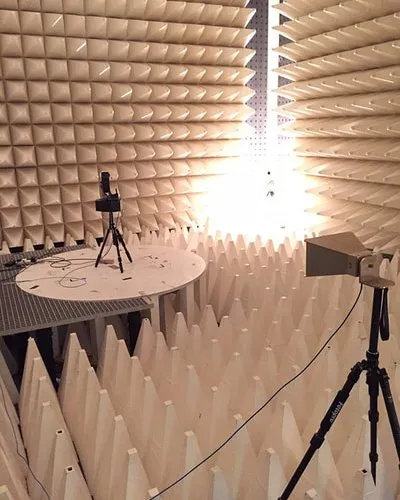

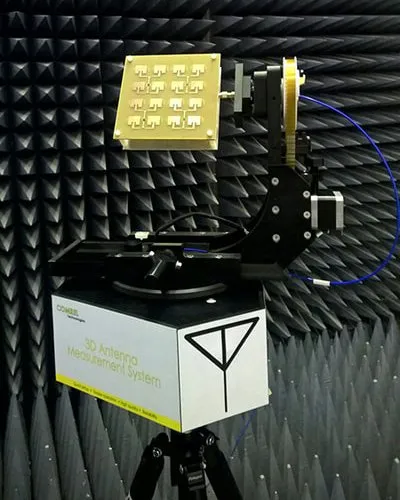

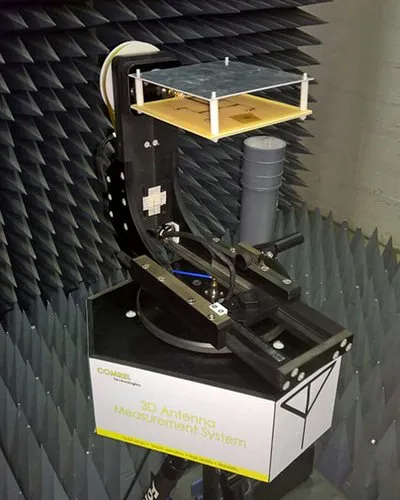

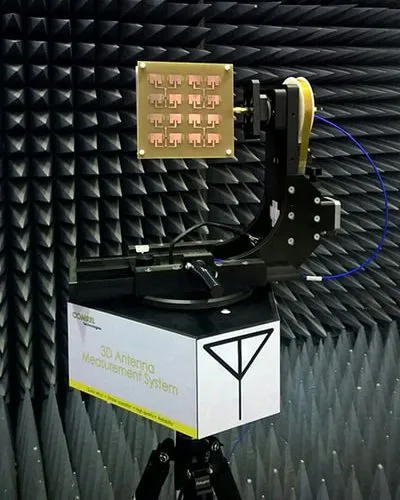

Rotating Platform: Dual-axis rotation platform
360° continuous movement for Elevation (EL) plane
±90° movement for Azimuth (AZ) plane

Angular Resolution: Selectable, up to 1° per step

Supported AUT Types: Microstrip antenna, cell phone
Allowable weight: 2.5 kg
Maximum AUT length (diagonal): 320 mm

Antenna Connector: SMA Female

Input Power Supply: 24V 2.5A

Operating Temperature: 0°C to 45°C

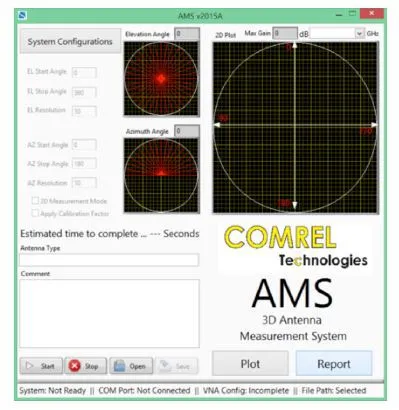

Measurement Software: iAMS™ Integrated Control and Antenna Measurement Software
A personal computer is required to run the iAMS™ software

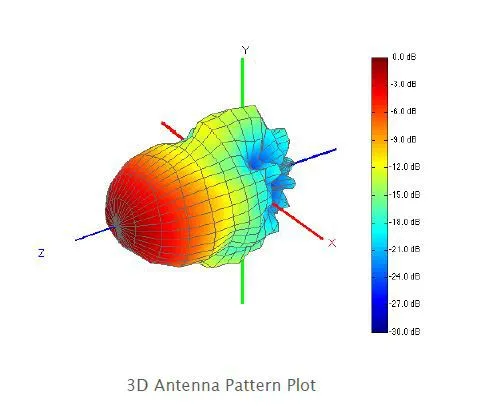

Supports 2D and 3D radiation pattern plots
Export data format: *.csv

Standard Accessories: 5 m RF coaxial cable (2), 3 m PC interface cable (1),
AC-DC power adapter (1), tripod (2), antenna supporting fixture (1)

Warranty: 1-year warranty covering all parts and technical support

AMS18G-02K

• 3D Antenna Measurement System
• Includes a 2-axis rotating platform, standard accessories, and iAMS™ software (single license)

Standard Horn Antenna

• Horn antenna options available:
• HRN1: 800 MHz to 8 GHz
• HRN2: 6 GHz to 18 GHz
• HRN3: 1 GHz to 18 GHz
• Optional accessory

RF Switching Box

• Frequency range: DC to 18 GHz
• Insertion loss: 2 dB @ 6 GHz
• Control interface: RS232 / USB
• Optional accessory

Cell Phone Fixture

• Add-on fixture designed to securely support cell phone DUTs during testing
• Optional accessory

Planar 304/1

• Portable VNA with frequency range of 100 kHz to 3.2 GHz
• Optional accessory*

Planar TR5048

• Portable VNA with frequency range of 20 kHz to 4.8 GHz
• Optional accessory*

Planar 804/1

• Portable VNA with frequency range of 100 kHz to 8.0 GHz
• Optional accessory*

Note:
Other models with equivalent performance may be used with modifications to the software command file.
