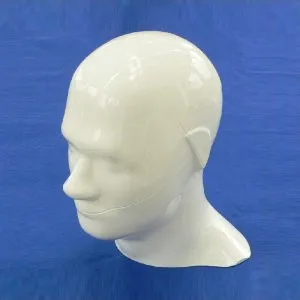

IXB-030 CTIA SAM Phantoms

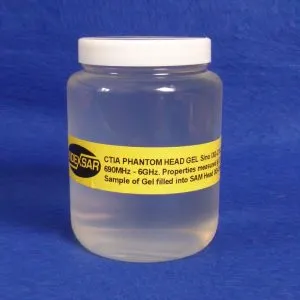

  • Optionally supplied pre-filled with a choice of gel or fluid material
  • Compliant with CAD dataset in CTIA OTA Test Plan v 3.x, IEC 62209, and IEEE1528
  • Permittivity & Conductivity tolerance +/-20% in frequency range 600MHz – 6GHz
  • Working temperature 22° ± 1°, Storage +15° to +35°
  • Long Life
  • Built in expansion relief
  • Supplied with certificate of conformance
  • Meets CTIA extended dimensions, 300 x 225mm +/- 2mm
  • Shell 2mm +/-10% thick except at the ear and sagittal seam
  • Strengthened for horizontal manipulation
  • 13mm Perspex base with x 4 threaded M8 fixing hole
  • Individually measured
  • CTIA material filled weight 6.75kg
  • Fixing, 4x 8mm screws 6mm deep 110 x 75mm pitch
