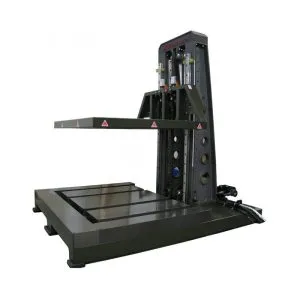

All new developing products must undergo several strict testing processes while in designing, manufacturing and packing/ shipping even. Our drop tester will provide data digitizing and analyzing of your drop and striking while the products in transportation. The testing data will help you improve the packing and buffer materials.
Packaged drop test is applied to test the anti-vibration & covering capability of packaging material and the sufficiency of product’s impact-resisting capability regarding packaged products. And use the test result to determine how to improve the packaging design. Free drop test is used to assess the characteristics of product’s free fall from improper actions; and evaluate the required strength and toughness of product under safety conditions.
Repeated free fall test is to simulate object’s condition after normal fall to hard surface.
Test Area (W × D): 1,200 × 950 mm
Testing Height: 300–1,300 mm / 300–1,800 mm / 300–2,000 mm
Maximum Load: 80 kg (0–1,200 mm), 60 kg (1,200 mm to maximum height)
Buffer Device: Hydraulic Buffer
Control Method: Cable Control with digital test height setting
Outline Dimensions (W × D × H): 1,200 × 1,500 × 2,250 mm / 1,200 × 1,500 × 2,750 mm / 1,200 × 1,500 × 2,950 mm
Weight: Approximately 450 kg
Electrical Requirement: 220 V, 1Φ, 5A
Air Pressure Requirement: 6 kg/cm²
